Description
Product features：
1. Using multi feed point design to ensure the superposition of phase center and geometrical center which
could minimize the influence of measurement error to lowest range
2. High gain of the antenna element and the direction map beam width to make sure the receiving satellites
performance of low elevation mask
3. Resistance multipath effects board inside could reduce the measurement error caused by multipath
4. Water proof, shock proof and lightning resistance
Survey antenna is the traditional RTK product standard antenna,can be widely used in land survey,marine
survey,channel survey,seismic monitoring,bridge survey,container opertion,etc.
This product is a complete set of sales containing:
GNSS receiving antenna 1PCS
Support GNSS system：
GPS:L1/L2/L5/
BEIDOU:B1/B2/B3
GLONASS:L1/L2
Galileo:E1/E5b

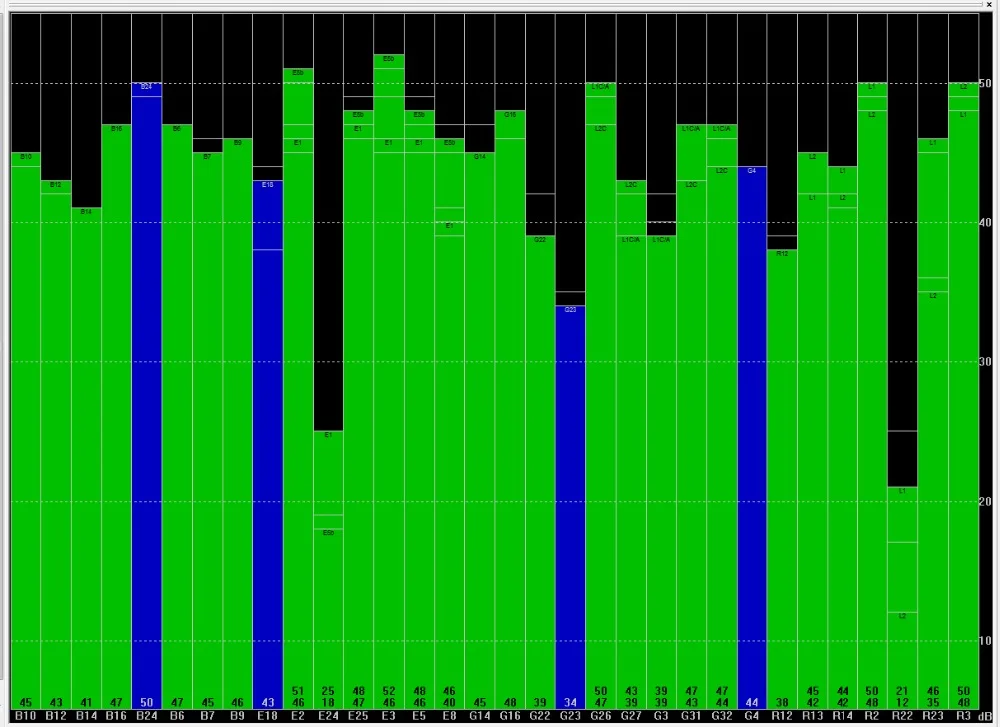

Topgnss gn-ggb0710 GNSS antenna with ZED-F9P module receiving satellite renderings
Packing product list (each one):

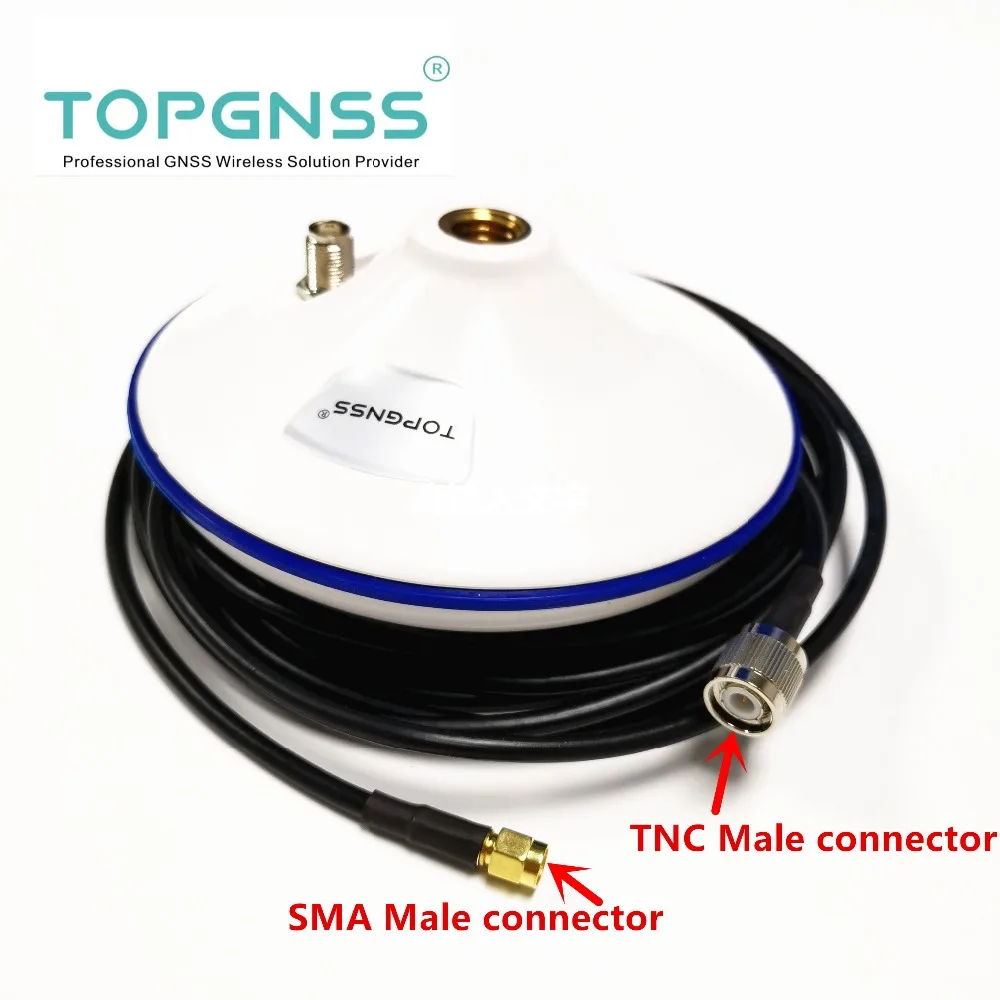

GNSS antenna GN-GGB0710 1PCS(Cable+magnet+antenna)
TOPGNSS GNSS Wireless Solution Provide
GNSS Antenna Series Products Provide ODM
TOPGNSS GNSS Antennas more new specifications to choose from, can provide OEM / ODM services.If you have special needs, please contact us, we will provide you with professional skills and services!
Can be used with high-precision RTK modules:
