Description



GN180 gps module 20_副本GN-180 gps module

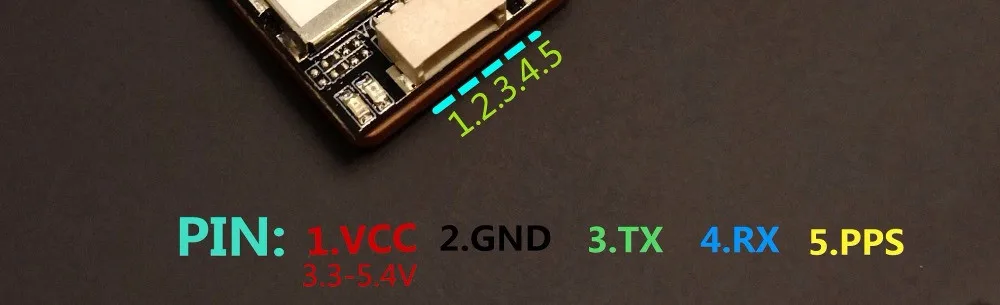

PIN GPS GNSS
 new products,
STOTON High quality SMART GNSS module GN-180(ttl)
The latest multi-GNSS platform firmware FW 3.01.   FW 3.01, besides retaining the original functions of GPS, GLONASS, BeiDou, QZSS and SBAS, is now adding Galileo support, which can track 3 satellites at the same time, and can also use all SBAS and QZSS enhancement systems at the same time.
GNSS default operating mode: GPS + GLONASS dual mode
High-quality components designed to ensure that the receiver performance!




Product highlights:
1. M8030-KT GNSS CHIP AND 18*18*4mm high sensitivity GPS antenna Design
2.Using 0.5PPM KDS high precision TCXO
3. built in RTC crystal and skin capacitance faster thermal initiation
4.1-10Hz location update rate
5.Support the positioning of PPS indicator: positioning success after flashing.
6.Support Online AssistNow and Offline AssistNow and other A-GPS services
7.GPS, GLONASS  SBAS (WAAS, EGNOS, MSAS, GAGAN) hybrid engine

Default output: 1HZ

 (can be set 5-10HZ)
The default baud rate: 9600
(can be set 19200 4800  38400  115200)

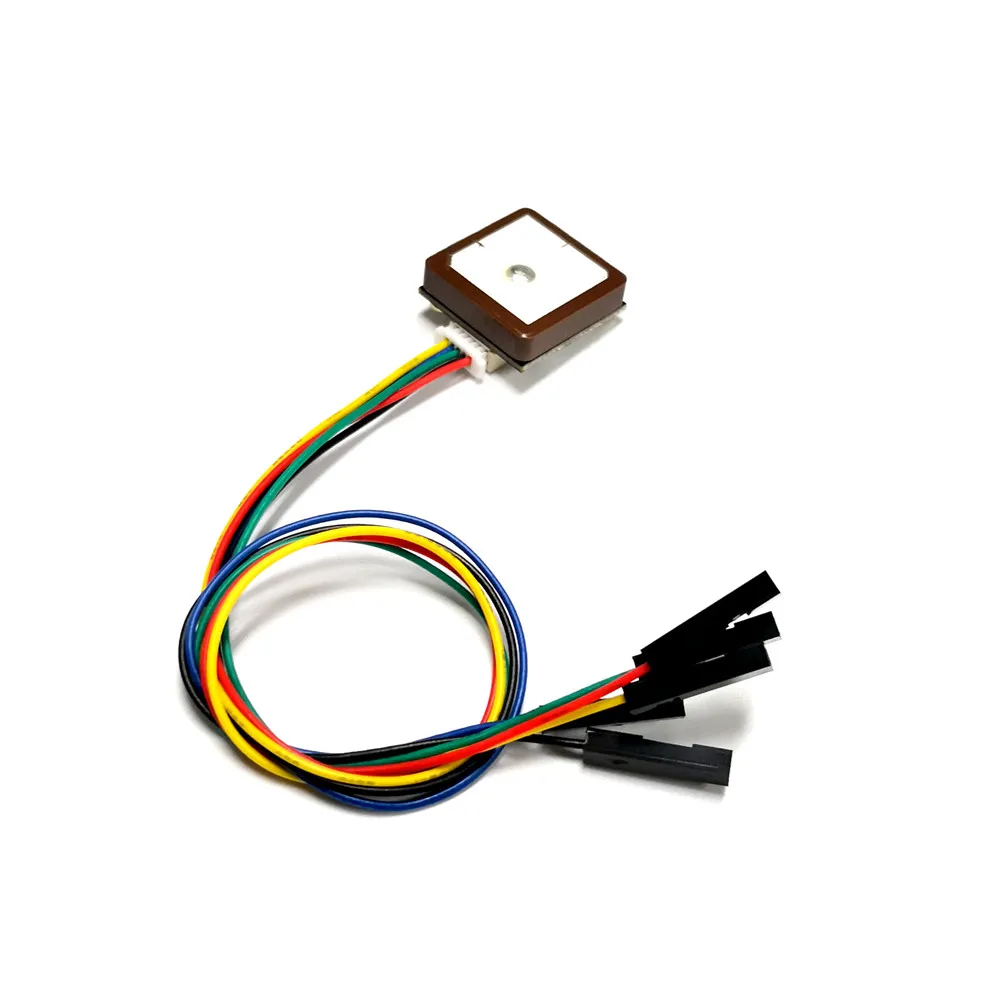

Small volume GPS module, including connector weight: 7.2g. Size only 18*18*8.2mm

Internal integrated LNA low noise amplifier circuit design, integrated FLASH, can be easily integrated in
The handheld wearable GPS GLONASS equipment and the aeronautical UAV equipment are required for volume.
Support refresh rate: 1-10Hz settings save
Support baud rate: default 9600 (save settings: 4800-38400-57600-115200)
smart gps module 30smart gps module 33
Product features:
UART (TTL)output protocol
GNSS multi-mode design, support GPS+GLONASS+GALILEO and GPS+ Beidou+GALILEO Positioning mode switching
Built in FLASH can be configured to save output parameters
Using 8030 chip design
5PIN pin pad
Baud rate: 9600 (default)
Location mode: GPS+GLONASS (default)
GPS+BEI DOU mode can be set
M8030-KT chipset

TOPGNSS GNSS Module GN-180 Performance

GNSS CHIP

M8030-KT

frequency

L1, 1575.42MHz,GLONASS L10F Bei Dou B1 SBAS L1 C/A:WASS,

protocol

NMEA 0183 v2.3,4.x GPS/QZSS L1 C/A,GLONASS L10F Bei Dou B1 SBAS L1 C/A:WASS,

EGNOS,MSAS , Support Galileo E1B/C. Default GPS+GLONASS mode
Default:GGA,GSA,GSV,RMC Support:VTG,GLL,TXT binary and NMEA Command

Available baud rate

(Default 9600) Can be set 1200,4800,19200,38400,57600,115200 bps

  Receiving channel

72

Sensitivity

Tracking sensitivity:-160Dbm Capture sensitivity:-157dBm

Cold start

29s average

Warm start time

28s average

Hot start time

1s average

Precision

HorizontalPosition:Autonomous<2.5maverage, SBAS < 2.0m average
Velocity: 0.1 m/s
Timepulse signal: RMS 30 ns

maximum height

18000  Meter

Maximum speed

515 m/s

Maximum acceleration

4G

Update frequency

1-10Hz(default1HZ

A-GPS

AssistNow on-line and off-line

Working output level

output level

Output TTL level

Physical characteristics

PIN

5 pin 1.0pitch  VCC 3.3-5V.GND .TX.RX.PPS.

Dimensions

18mm *18 mm * 8.2mm

Operating Voltage

3.3V-5.0VDC ±5%

weight

5.5g

Connector form

1.0 5 PIN

Cable length:

15 CM

Operating temperature

-40 to 85° C

Storage temperature

-40 to 85° C




Packing list: GNSS module 1PCS
​

    We can provide OEM, ODM service, if you need to buy more quantity, please contact our customer service staff, thank you!
